LS머트리얼즈는 45종 이상의 셀을 양산하고 있습니다.
BusBar type
60Φ Series Cell
Terminal Type
-
- Short Screw
(ST01)
-
- Weldable
(WT01)
-
- Long Screw (LT01)
M16 Terminal
-
- Long Screw (LT02)
M12 Terminal
60 ∅ 시리즈Busbar connection type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 60Ø | 2.7 | 650 | LSUC 002R7C 0650F NH | 0.57 | 640 | Cylindrical | 60 x L51.5 | download |
| 60Ø | 2.7 | 1200 | LSUC 002R7C 1200F NH | 0.33 | 1160 | Cylindrical | 60 x L74 | download |
| 60Ø | 2.7 | 1500 | LSUC 002R7C 1500F NH | 0.28 | 1426 | Cylindrical | 60 x L85 | download |
| 60Ø | 2.7 | 2000 | LSUC 002R7C 2000F NH | 0.27 | 1753 | Cylindrical | 60 x L102 | download |
| 60Ø | 2.7 | 3000 | LSUC 002R7C 3000F NH | 0.2 | 2500 | Cylindrical | 60 x L138 | download |
| 60Ø | 2.85 | 3400 | LSUC 02R85C 3400F NH | 0.23 | 2719 | Cylindrical | 60 x L138 | download |
| 60Ø | 3.0 | 3000 | LSUC 003R0C 3000F NH | 0.2 | 2800 | Cylindrical | 60 x L138 | download |
| 60Ø | 3.0 | 3400 | LSUC 003R0C 3400F NH | 0.2 | 3000 | Cylindrical | 60 x L138 | download |
| 60Ø | 3.0 | 3400 | LSUC 003R0C 3400F LE | 0.14 | 3400 | Cylindrical | 60 x L138 | download |
PCB type
22Φ, 33Φ, 35Φ Series Cell
Terminal Type
-
- Snap-in
(100F/ 120F)
-
- Lug
(320F ~ 720F)
-
- Snap-in
(4pin,350F ~ 720F)
22 ∅SeriesPCB mounting type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 22Ø | 2.8 | 100 | LSUC 002R8S 0100F EA | 9.0 | 74 | Snap-in | 22 x L46 | download |
| 22Ø | 2.8 | 120 | LSUC 002R8S 0120F EA | 9.0 | 81 | Snap-in | 22 x L46 | download |
| 22Ø | 3.0 | 100 | LSUC 003R0S 0100F EA | 7.0 | 88 | Snap-in | 22 x L46 | download |
33 ∅SeriesPCB mounting type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 33Ø | 2.8 | 360 | LSUC 002R8L 0360F CU03 | 3.2 | 234 | Lug | 33 x L61 | download |
35 ∅ SeriesPCB mounting type cell
| Series | Rated Voltage |
Capa Citance |
Part No. | Max. ESR(DC) |
Max. Current |
Type | Dimensions | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | Φ x mm | ||||
| 35Ø | 2.8 | 320 | LSUC 002R8L 0320F EM | 2.0 | 273 | Lug | 35 x L61 | download |
| 35Ø | 2.8 | 350 | LSUC 002R8L 0350F EA | 3.2 | 231 | Lug or Snap-in | 35 X L61 | download |
| 35Ø | 2.8 | 400 | LSUC 002R8L 0400F EA | 3.0 | 255 | Lug or Snap-in | 35 X L66 | download |
| 35Ø | 2.8 | 450 | LSUC 002R8L 0450F EA | 3.0 | 268 | Lug or Snap-in | 35 X L71 | download |
| 35Ø | 2.8 | 600 | LSUC 002R8L 0600F EA | 3.2 | 288 | Lug or Snap-in | 35 X L71 | download |
| 35Ø | 2.8 | 720 | LSUC 002R8L 0720F EA | 2.0 | 413 | Lug or Snap-in | 35 X L105 | download |
| 35Ø | 3.0 | 360 | LSUC 003R0L 0360F LE | 1.7 | 335 | Lug | 35 x L61 | download |
| 35Ø | 3.0 | 380 | LSUC 003R0L 0380F EA | 3.2 | 257 | Lug or Snap-in | 35 X L61 | download |
| 35Ø | 3.0 | 430 | LSUC 003R0L 0430F EA | 3.0 | 282 | Lug or Snap-in | 35 X L66 | download |
| 35Ø | 3.0 | 480 | LSUC 003R0L 0480F EA | 3.0 | 295 | Lug or Snap-in | 35 X L71 | download |
| 35Ø | 3.0 | 600 | LSUC 003R0L 0600F EA | 3.2 | 308 | Lug or Snap-in | 35 X L71 | download |
Lead type

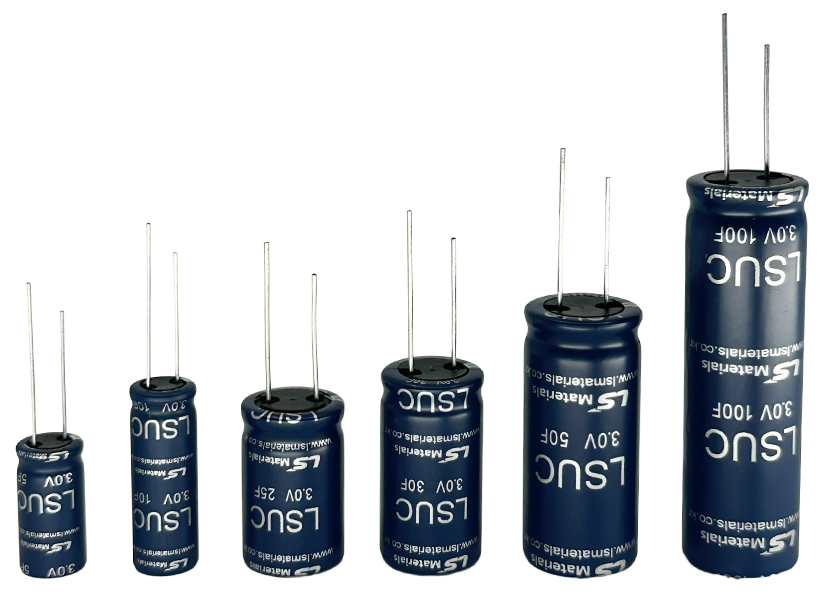

LS Ultracapacitor Small Cell Line-up

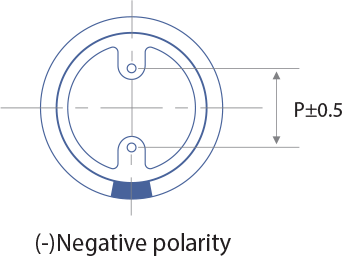

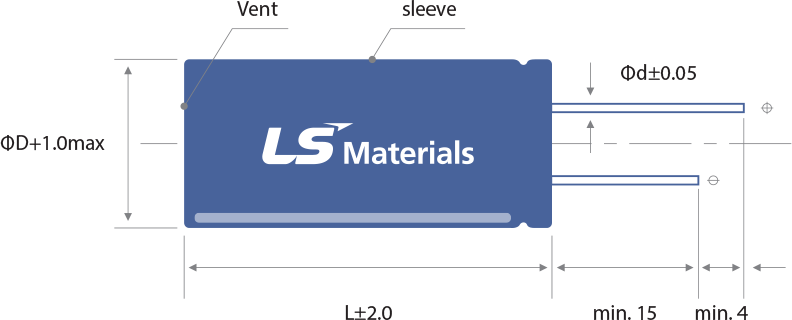

DIMENSIONS SPECIFICATIONS
SPECIFICATIONS
| Rated Voltage |
Capacitance | Part Name | Internal Resistance ESR AC |
Internal Resistance ESR DC |
Maximum Continuous Current |
Maximum Peak Current |
72-hour Leakage Current |
Maximum Energy |
Energy Density |
Power Density |
Outer Diameter(ΦD) |
Height (L) | Pin Spacing(P) |
Pin Diameter(Φd) |
Weight | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V | F | mΩ(1kHz) | mΩ | A(ΔT=15°C) | A | μA | Wh | Wh/kg | Wh/kg | mm | mm | mm | mm | g | ||
| 3 | 5 | LSUC 003ROR 0005F EA | ≤40 | ≤90 | 1.09 | 5.17 | ≤15 | 0.0063 | 2.84 | 5.45 | 10 | 20 | 5.0 | 0.6 | 2.2 | |
| 3 | 10 | LSUC 003ROR 0010F EA | ≤25 | ≤50 | 1.75 | 10.0 | ≤25 | 0.0125 | 3.91 | 6.75 | 10 | 30 | 5.0 | 0.6 | 3.2 | |
| 3 | 15 | LSUC 003ROR 0015F EA | ≤20 | ≤50 | 1.82 | 12.86 | ≤35 | 0.0188 | 4.36 | 5.02 | 12.5 | 25 | 5.0 | 0.6 | 4.3 | |
| 3 | 25 | LSUC 003ROR 0025F EA | ≤15 | ≤25 | 2.96 | 23.08 | ≤75 | 0.0313 | 4.17 | 5.16 | 16 | 25 | 7.7 | 0.8 | 7.5 | |
| 3 | 30 | LSUC 003ROR 0030F EA | ≤20 | ≤30 | 2.92 | 23.68 | ≤80 | 0.0375 | 4.46 | 4.29 | 16 | 30 | 7.7 | 0.8 | 8.4 | |
| 3 | 50 | LSUC 003ROR 0050F EA | ≤15 | ≤20 | 4.34 | 37.50 | ≤100 | 0.0625 | 4.70 | 4.06 | 18 | 40 | 7.7 | 0.8 | 13.3 | |
| 3 | 100 | LSUC 003ROR 0100F EA | ≤8 | ≤10 | 7.39 | 75.00 | ≤260 | 0.1250 | 5.95 | 5.14 | 18 | 60 | 7.7 | 0.8 | 21.0 |
