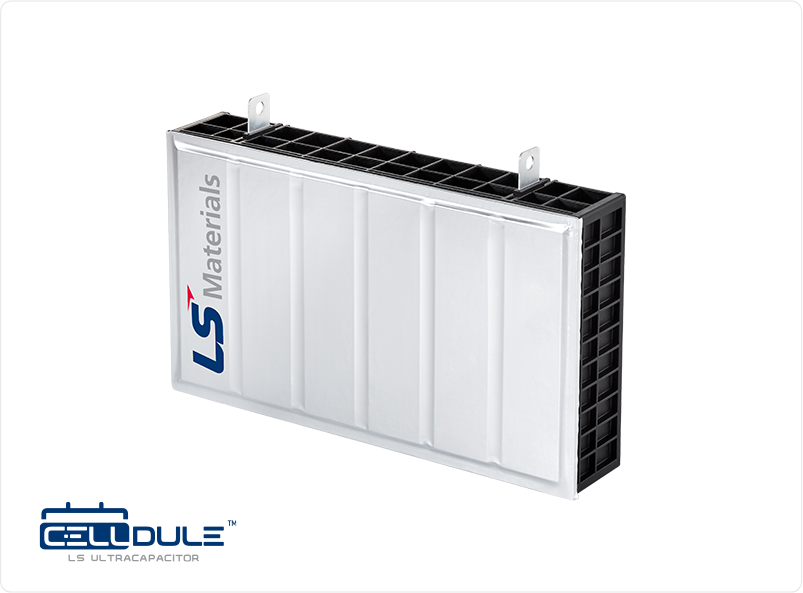

Celldule 16.2V 200FWorld’s First Innovation Technology

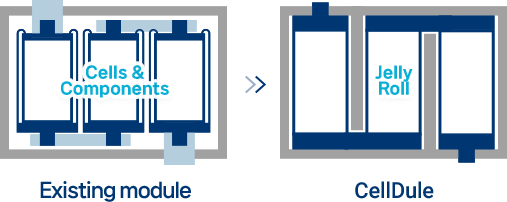

Innovative Structure Jelly Roll directly into the Module High-Voltage&Capacity cell with Module-Level performance
Advantages
-
Cost
Effectiveness -
Double
Energy Density -
Compact Size &
Lightweight -
Quality
Improvement
SPECIFICATION
- Stored Energy
- 7.29Wh (4.05/kg)
- Size
- 1.8kg / 228L x 168W x 47.5H mm
- Max ESR(DC)
- 4.0mΩ
- MAX Current
- 1,000A
| Celldule 16.2V 200F | LSUM 016R2C 0200F EA AG | LSUM 016R2C 0200F EA MH | |
|---|---|---|---|
| SIZE(mm) | 258.4*168.5*48.5 | 278.1*166*71 | 416.2*67.2*111.9 |
| Weight(kg) | 1.8kg | 3.6kg | 3.2kg |
| Stored Energy(Wh) | 7.29Wh | 7.29Wh | 7.29 Wh |
| Energy Density(Wh/kg) | 4.05 Wh/kg | 2.03 Wh/kg | 2.29 Wh/kg |
| Energy Density(Wh/L) | 3.95 Wh/L | 2.36 Wh/L | 2.82 Wh/L |
Application
-
Automotive Market -

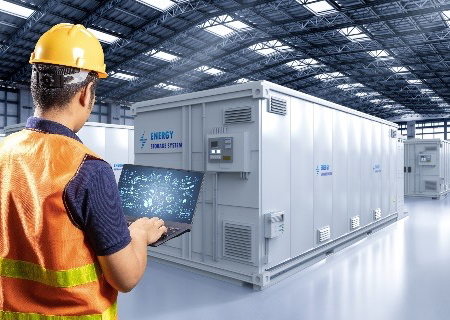

ESS -
Telecommunication Tower
