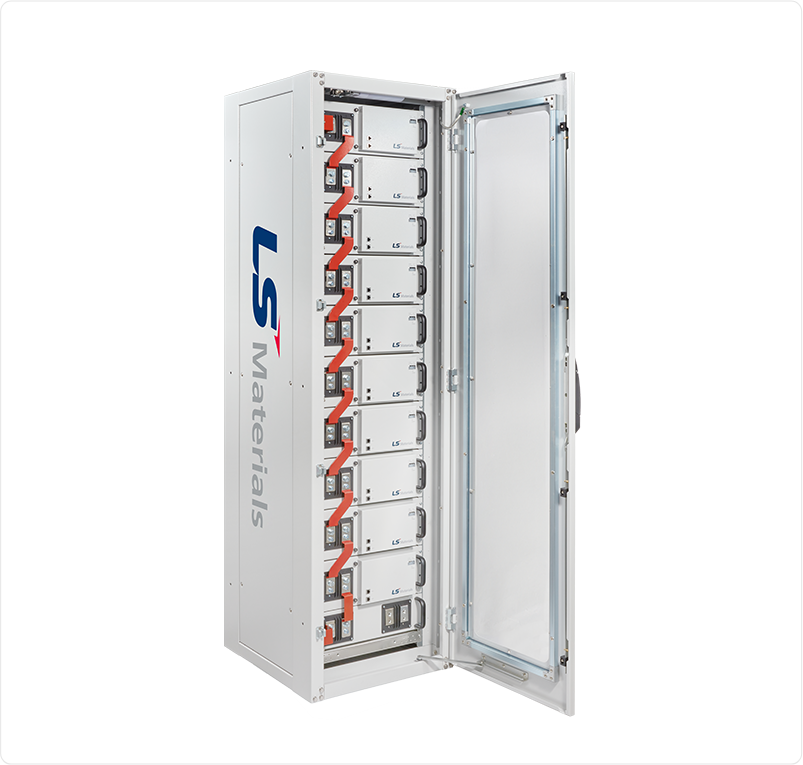

LS UltraGrid (19” Rack)MV-scale Ultracapacitor ESS for Enhanced STATCOM
Short-term peak power (1/1000 sec) for MV-GW scale grid
- Smart Single Cell Balancing
- Module to Module Balancing Algorithm
- Rack to Rack Balancing Algorithm
- SoH / SoA Software (Life Simulation)
- CMS (Capacitor Management System)
SPECIFICATION
- Voltage
- 1,440V
- Capacitance
- 7.1F
- Max DC ESR
- 88mΩ
- Max Current
- 3.1kA
- Number of Units
- 10 Rack modules + 1 CPU modules
- Size
- 600W x 700D x 2,100H mm - 43U(19”)

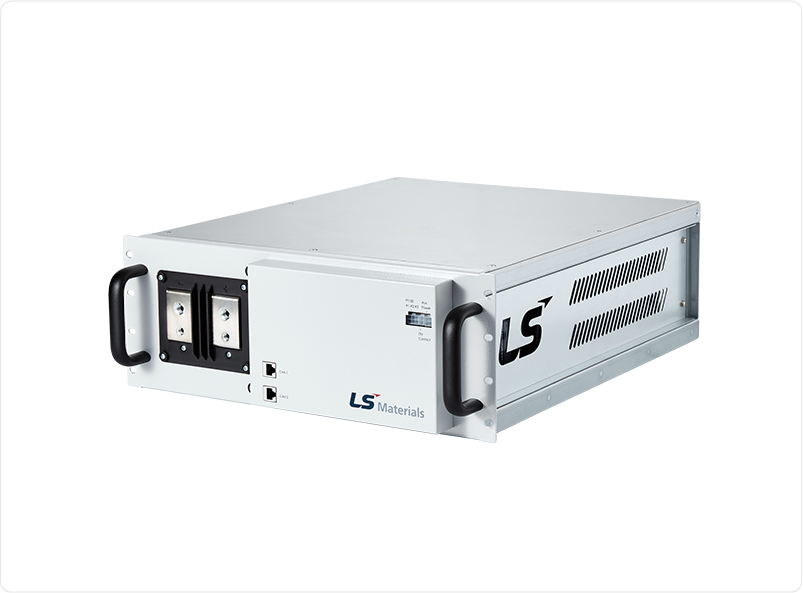

LS UltraGrid Module
(19” Rack Module)
- CAN 2.0B Communication & Remote FW Update
- 19’’ Rack-Compatible
(Designed for Industrial Standard Cabinets) - Smart Single Cell Balancing
SPECIFICATION
- Voltage
- 1,44V
- Capacitance
- 70.8F
- Max DC ESR
- 8.1mΩ
- Max Current
- 3.2kA
- Number of Units
- 3V 3400F cell in 48 series
- Size
- 482W x 597D x 174H mm - 4U(19”)
