LS Materials has more than 20 types
of modules in mass production.
PCB type
PCB type seriesPCB type Series is modules built up with 22Φ & 33Φ & 35Φ series cells on PCB board
BusBar type
Busbar type seriesBusbar type Series is modules built up with 60Φ series cells connected with busbar
| Part No. | Rated Voltage |
Capa Citance |
Max. ESR(DC) |
Max. Continuous Current |
Weight | Dimensions | Spec Sheet |
User Manual |
|---|---|---|---|---|---|---|---|---|
| V | F | mΩ | A | kg | L x W x H (mm) | |||
|
|
16.2 | 500 | 1.5 | 200 | 5.6 | 67.2 x 416.2 x 175.9 | download | download |
|
|
32.4 | 250 | 3.3 | 150 | 10.0 | 137.1 x 426.6 x 184 | download | download |
|
|
48.6 | 166 | 4.4 | 130 | 14.0 | 194.5 x 419.5 x 177 | download | download |
|
|
51.3 | 166 | 5.0 | 100 | 12.0 | 590.4 x 136 x 171 | download | download |
|
|
86.4 | 93 | 11.3 | 80 | 27.0 | 517 x 265 x 210.5 | download | download |
|
|
129.6 | 62 | 11.5 | 240 | 55.0 | 720 x 405 x 226 | download | download |
CTC type
CTC Description

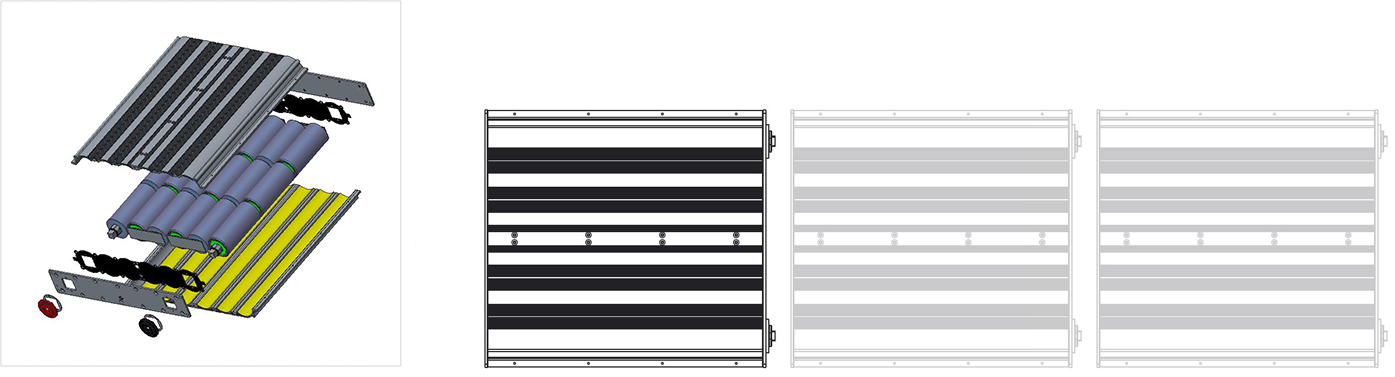

CTC (Cell to Cell) series module can be made up with connected cells (60 Series cell) at customer`s request
The CTC module can be made from 16V up to 108V without additional development with extendable module case
Monitoring for CTC series modulePCB mounting type cell
| Temperature sensor |
Temperature interface |
Connector | Cell voltage monitoring |
Balancing |
|---|---|---|---|---|
| NTC Thermistor | Analog | 4pin | OVA(Optional) | Active or Passive |
CTC seriesCTC (Cell To Cell) series module is available from 16V to 108V, is extendable and customizable without additional costs to the customer
| Part No. | Applied Cell Unit | Rated Voltage |
Capa citance |
Max. ESR(DC) |
Max. Continuous Current |
Weight | Dimensions | Spec Sheet |
User Manual |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Voltage | Capacitance | Series | |||||||||
| V | F | V | F | mΩ | A | kg | L x W x H (mm) | ||||
| LSUM 048R6C 0066F EA YJ | 2.7 | 1200 | 18 | 48.6 | 66 | 7.2 | 160 | 10.3 | 279 x 418 x 71 | download | |
| LSUM 064R8C 0050F EA YJ | 2.7 | 1200 | 24 | 64.8 | 50 | 9.6 | 130 | 13.2 | 362 x 418 x71 | download | download |
| LSUM 048R6C 0083F EA YJ | 2.7 | 1500 | 18 | 48.6 | 83 | 6.1 | 180 | 11.5 | 312 x 418 x 71 | download | |
| LSUM 064R8C 0062F EA YJ | 2.7 | 1500 | 24 | 64.8 | 62 | 8.1 | 140 | 14.8 | 406 x 418 x 71 | download | download |
| LSUM 048R6C 0111F EA YJ | 2.7 | 2000 | 18 | 48.6 | 111 | 5.9 | 180 | 13.5 | 363 x 418 x 71 | download | |
| LSUM 064R8C 0083F EA YJ | 2.7 | 2000 | 24 | 64.8 | 83 | 7.8 | 150 | 17.5 | 474 x 418 x 71 | download | |
| LSUM 048R6C 0166F EA YJ | 2.7 | 3000 | 18 | 48.6 | 166 | 4.4 | 200 | 17.2 | 471 x 418 x 71 | download | download |
| LSUM 064R8C 0125F EA YJ | 2.7 | 3000 | 24 | 64.8 | 125 | 5.8 | 160 | 22.5 | 618 x 418 x 71 | download | download |
| LSUM 016R2C 0250F EA AG | 2.7 | 1500 | 6 | 16.2 | 250 | 2.0 | 150 | 3.9 | 311 x 166 x 70 | download | download |
| LSUM 016R2C 0500F EA AG | 2.7 | 3000 | 6 | 16.2 | 500 | 1.5 | 200 | 5.9 | 470 x 166 x 70 | download | download |

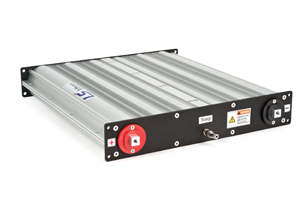

LSUM 048R6C 0166F EA YJ

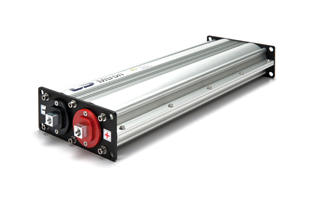

LSUM 016R2C 0500F EA AG

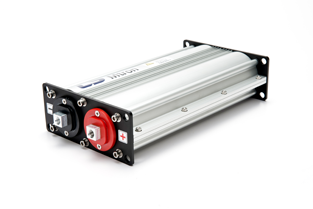

LSUM 016R2C 0250F EA AG
